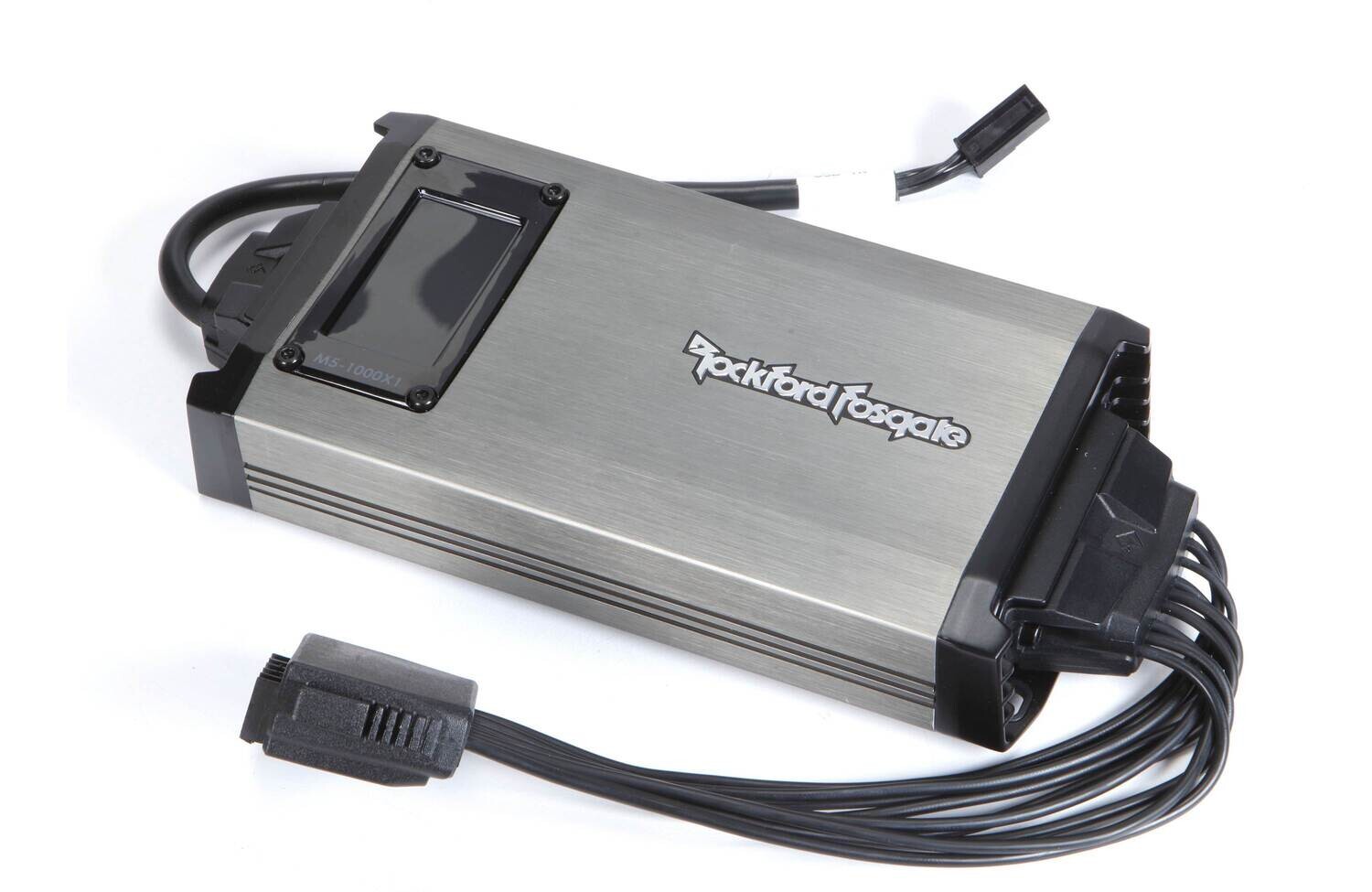

M5 Series marine subwoofer amplifier — 750 watts RMS x 1 at 1 or 2 ohms

Rockford Fosgate designed this M5 Series amplifier for marine and powersports environments, using a special "Element Ready" chassis and conformal-coated PC boards to protect against dust and water. The M5-1000X1 amplifier can send up to 750 watts RMS to your marine sub, with a Dynamic Power rating of 1,000 watts at 1 ohm. You can adjust the low-pass filter and Rockford Fosgate's famous Punch boost to get the best possible bass from your sub and enclosure.

PRODUCT DETAILS:

• mono marine subwoofer amplifier
  • 500 watts RMS CTA-2006 x 1 at 4 ohms
  • 750 watts RMS CTA-2006 x 1 at 1 or 2 ohms
  • 1000 watts Dynamic Power at 1 ohm
• Class-BD amplifier design
• frequency response: 30-245 Hz
• variable low-pass filter (50-250 Hz, 12 dB/octave)
• switchable subsonic filter (30 Hz, 12 dB/octave)
• variable bass boost (0-18 dB at 45 Hz)
• C.L.E.A.N. gain setup system includes clip lights
• balanced differential inputs eliminate noise picked up by your cables
• auto remote turn-on
• preamp and speaker-level inputs
• preamp outputs
• wiring, fuse, and hardware not included with amplifier
  • 8-gauge power and ground leads and a 120-amp fuse recommended
• dimensions: 10-3/8"W x 1-3/4"H x 4-1/4"D
• Mono marine amplifier
• Power/ground/turn-on plug
• Speaker output plug
• 14" Input harness (2 RCA to 4-pin Molex)
• 3mm Allen wrench
• Instruction manual
