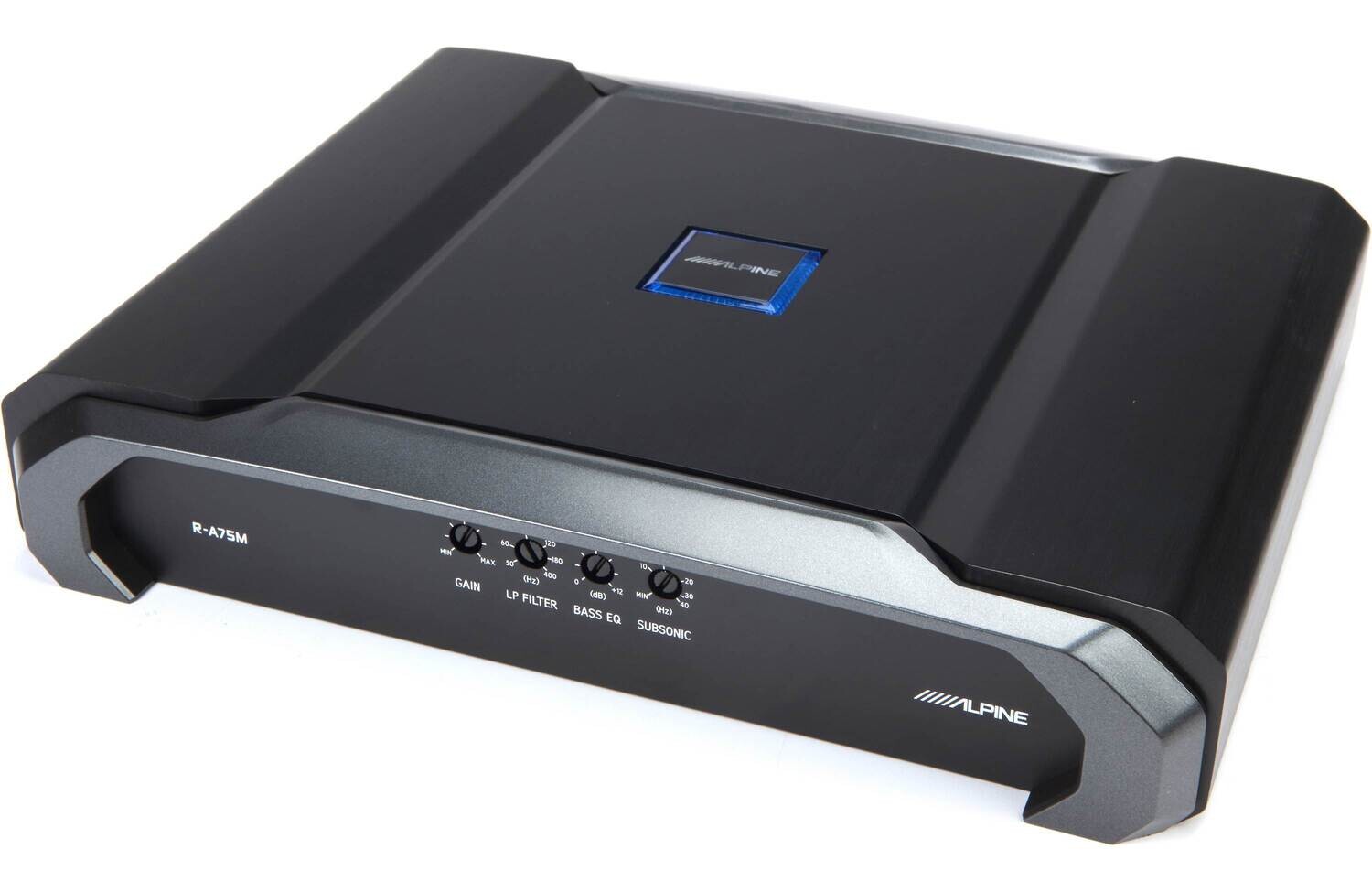

R-Series mono subwoofer amplifier — 750 watts RMS x 1 at 2 ohms

PRODUCT DETAILS:

• mono subwoofer amplifier
  • 500 watts RMS x 1 at 4 ohms (750 watts RMS x 1 at 2 ohms)
• CTA-2006 compliant
• variable low-pass filter (50-400 Hz, 24 dB/octave)
• variable bass boost (0-12 dB at 50 Hz)
• variable subsonic filter (8-40 Hz, 24 dB/octave)
• preamp outputs
• wiring and hardware not included with amplifier
  • 4-gauge power and ground leads recommended
• fuse rating: 40A x 2
• dimensions: 10-3/4"W x 2-1/16"H x 10"D
• Mono subwoofer amplifier
• Two 40-amp ATO fuses (installed)
• 4 Mounting feet
• Four 3/4" Screws
• Eight M2.5x5.5mm Machine screws
• 2mm Allen wrench
• 3mm Allen wrench
• Owner's manual (English/ French/ Spanish)
• Alpine Verification Certificate
• Warranty information
• Power supply note
• On-line product registration information
