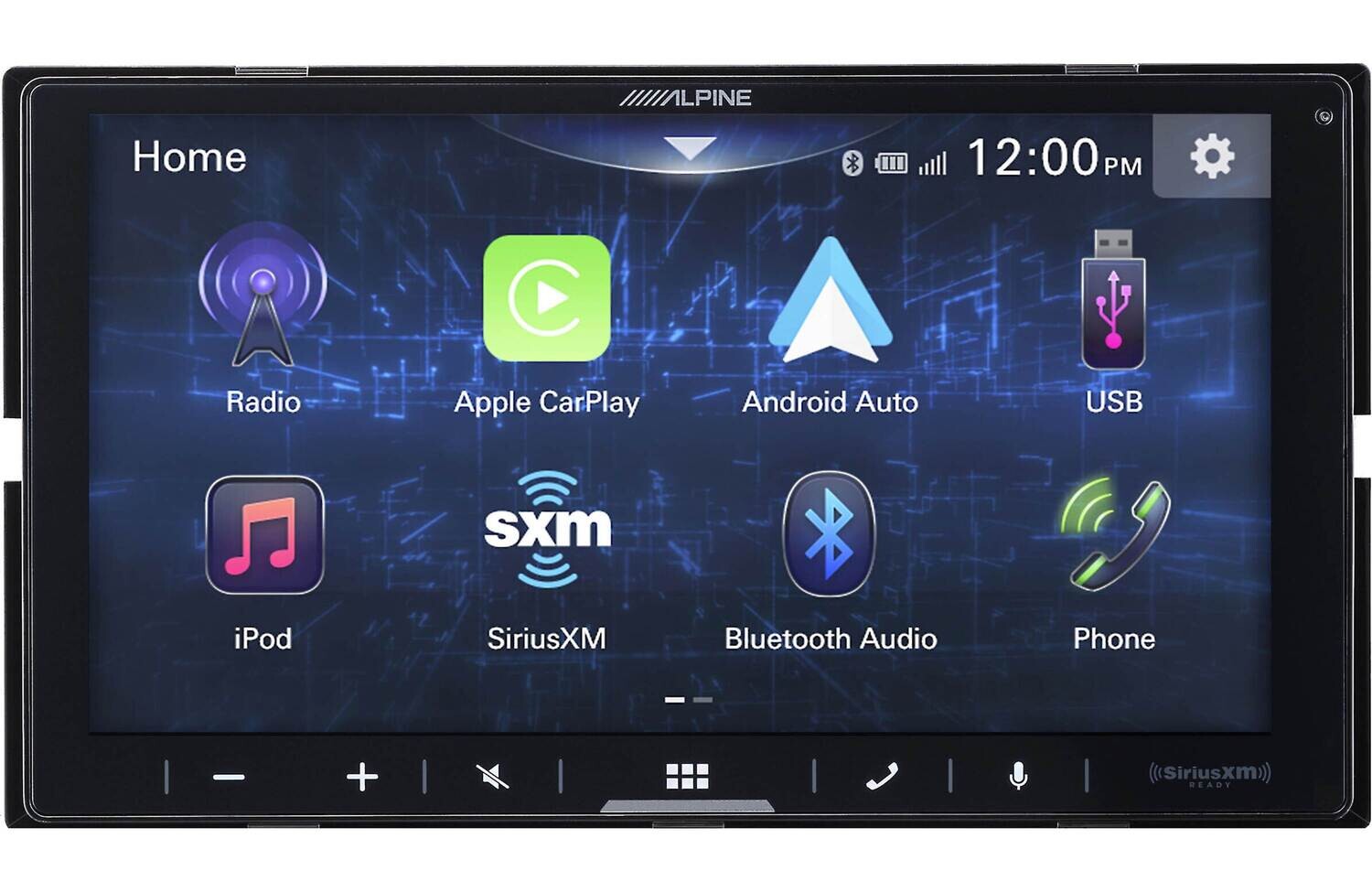

Digital multimedia receiver (does not play discs)Alpine's iLX-W670 multimedia receiver builds upon the functionality and deisgn to their legendary iLX-W650 radio with sonic enhancements to make things more ear-friendly. It supports wired Apple CarPlay® and Android Auto™ phone integration, plays well with Bluetooth® devices, and to round things out, it offers more advanced audio command than its predecessor, with a heavy emphasis on bass management for smooth low end no matter what you're listening to.

PRODUCT DETAILS:

• digital media receiver with AM/FM tuner (does not play discs)
• 6.75" capacitive touchscreen
• designed for use with Alpine's KTA-450 or KTA-200M power pack amplifiers
• fits in double-DIN (4" tall) dash openings
• Bluetooth hands-free calling and audio streaming (external microphone included)
• Apple CarPlay compatible (wired only)
• Android Auto compatible (wired only)
• built-in iPhone control
• Siri Eyes Free and Google Assistant control
• playback and control of music files on compatible Android devices
• plays MP3, WMA, AAC, WAV, and FLAC music files (see Details tab for full capabilities)
• plays AVI, MPEG 1/2, MPEG-4, and WMV video files (see Details tab for full capabilities)
• 13-band graphic equalizer
• 6-channel time correction
• front, rear, and subwoofer crossovers
• Sound Boost Menu (Bass Boost, Mid-Bass Boost, & Subwoofer Controls)
• Lighting Link Control (compatible with Alpine PrismaLink subwoofers)
• works with SiriusXM SXV300 tuner (not included)
• inputs: rear USB port, rear 3.5mm audio/video auxiliary input, camera input
• outputs: 6-channel preamp outputs (4-volt front, rear, subwoofer)
• wired connection to parking brake required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)
• compatible with most factory steering wheel audio controls (iDatalink Maestro or PAC adapter required)
• built-in amplifier (16 watts RMS/50 peak x 4 channels)
• Digital media receiver
• Wiring harness (15A fuse)
• Preout/Camera harness
• 42" USB extension cable
• GPS antenna (attached 12' cable terminated by a Fakra connector)
• Sefl-adhesive mount for GPS antenna
• Microphone with bracket (attached 13' cable terminated by a male 2.5mm mono connector)
• 4 Pan-head ISO screws
• 4 Counter-sunk ISO screws
• Quick Reference Guide
• Registration Card
