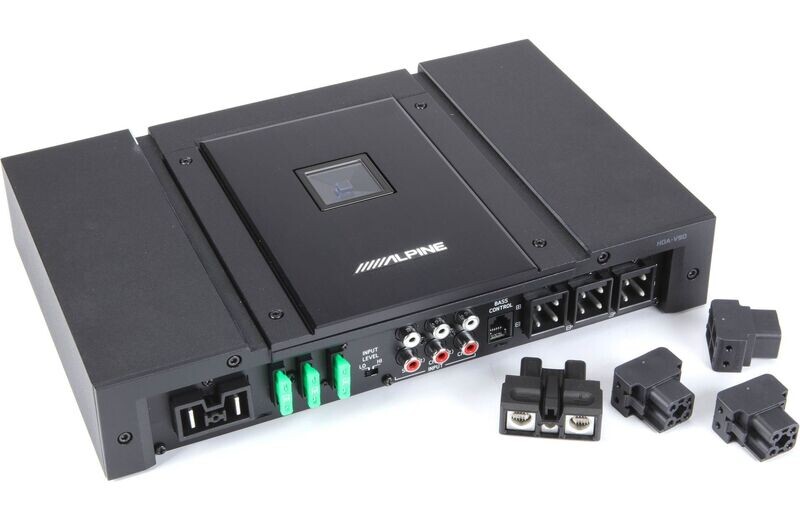

Alpine HDA-V90
+3

Alpine HDA-V90

00010
$899.95
Out of stock
1
Product Details

With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

FEATURES

  • Hi-Res Audio Playback (192kHz/24Bit)
  • 5-Channel Amplifier
  • High-Efficiency Digital Circuit Design
  • Alpine’s Dual Negative Feedback Control Circuit
  • High Bandwidth Amplifier
  • Alpine’s Premium Class D Circuit Design
  • Copper-plated chassis
  • Black circuit board

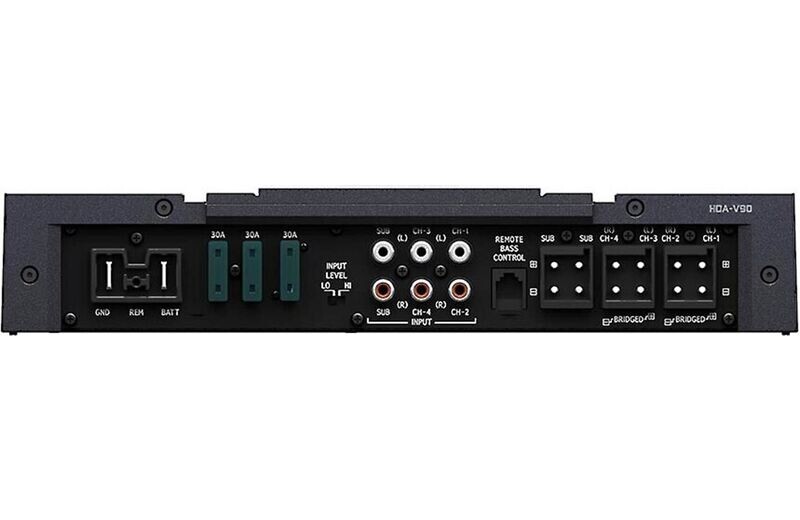

  • One-sided terminal layout

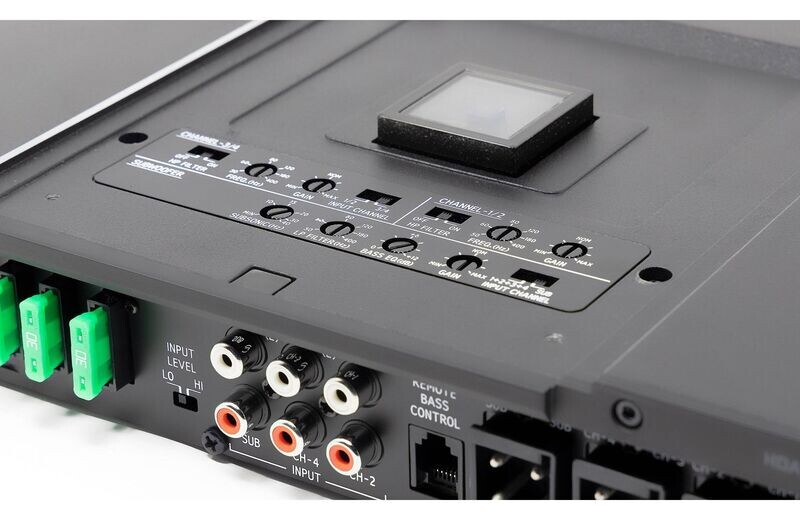

  • Top panel sound controls
  • Quick connect power and speaker terminals
  • Optional Remote bass knob compatible (requires RUX-KNOB.2 or RUX-H01, sold separately)

What's in the Box:
  • HDA-V90 5-Channel Amplifier
  • Owner’s manual
  • “Birth sheet” that certifies by measurement the actual power of the amplifier in the box
  • 4 Screws for amplifier mounting to the vehicle
  • 2pcs. Mount bracket w/ 4 Screws for attachment to the amplifier
  • 3pcs. Allen wrench for amplifier connection & installation – Sizes: 2mm/2.5mm/4mm
  • 1pc. Quick connector block for Power/Ground/Remote wires
  • 3pcs. Quick connector block for Speaker wires


TECH SPECS

  • Dimensions: 11.4375” x 7.5” x 2.125”
  • Power Rating: (14.4V, ≤1.0% THD+N)
  • 75W x 4 + 300W x 1 @ 4Ω
  • 100W x 4 + 500W x 1 @ 2Ω
  • Bridged: 200W x 2 @ 4Ω (ch1/2, ch3/4 only)
  • THD+N: 0.02% (10W into 4ohm)
  • S/N Ratio: 87dB (1W into 4ohm)
  • Frequency response: 8-60kHz (-3dB)
  • Damping factor: 500 (ch1/2/3/4), 1000 (subwoofer)
  • Selectable input level – HI/LO
  • Selectable 2/4/6ch input
  • Variable High pass / Low pass crossover
  • Variable Subsonic filter (subwoofer)
  • Bass EQ (0 to +12dB, Variable)
  • Auto-turn on with remote sensing
